Description

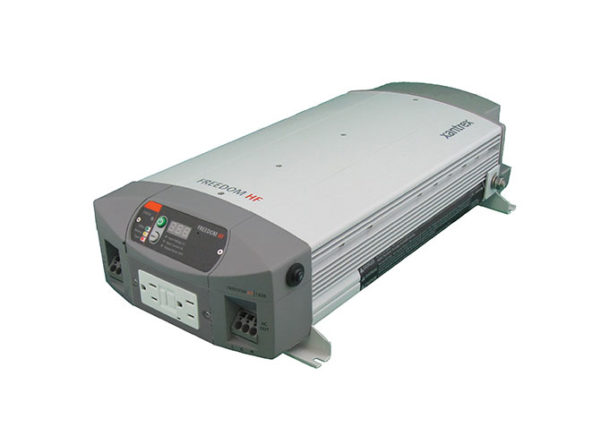

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV’s and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.
Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.
| Models | Part number | Input voltage | AC output |
|---|---|---|---|
| Freedom HF 1000 | 806-1020 | 12V | GFCI and/or Hardwire |
| Freedom HF 1055 | 806-1055 | 12V | GFCI and/or Hardwire |
| Freedom HF 1800 | 806-1840 | 12V | GFCI and/or Hardwire |
| Accessories | Part number |
|---|---|
| Remote Control Panel (no cable) | 808-1840 |
| Remote cable, tel-type 6-cndct 25ft | 31-6257-00 |
| Remote cable, tel-type 6-cndct 50ft | 31-6262-00 |
Product Features
- Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
- Removable digital display pre-attached with 25’ extension cable for remote system monitoring
- Ignition lockout feature helps to minimize battery drain
- Automatic three-stage battery charger
- Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)
- Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power
Protection Features
- Battery over-voltage and under-voltage protection
- Over-temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Ground-fault protection
- ETL certified to UL458 for use in mobile RV and commercial applications
