Specifications

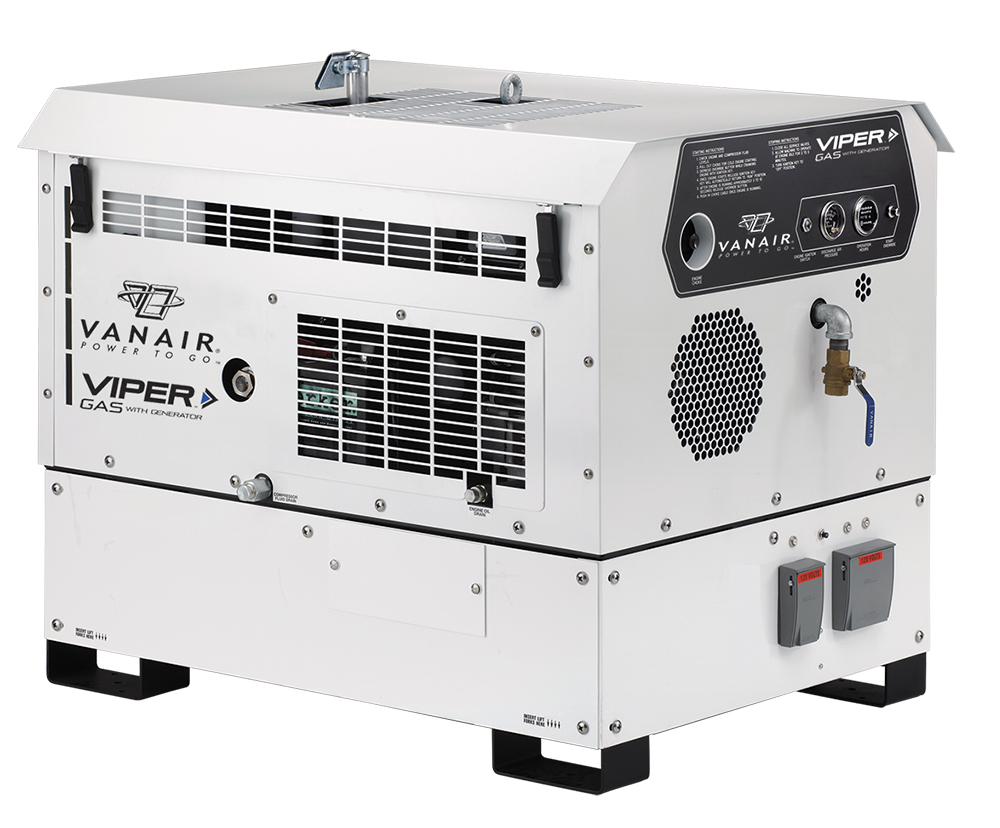

Dual Functionality Air Compressor and AC Generator Specifications
| Capacity (CFM) | 40 |
|---|---|
| Pressure (PSI) | 100 |
| Engine Speed (RPM) | 3600 |
| kW (peak) | 5.2 |
| HZ | 60 |
| Generator Speed (RPM) | 3600 |
Full air compressor and generator capacity available simultaneously. Ratings per CAGI/PNEUROP PN2CPTC3.
Single Function Air Compressor or AC Generator Specifications
| Capacity (CFM) | 45 | 70 |
|---|---|---|
| Pressure (PSI) | 150 | 100 |
| Engine Speed (RPM) | 3600 | 3600 |
| kW (peak) | 5.2 | 5.2 |
| HZ | 60 | 60 |
| Generator Speed (RPM) | 3600 | 3600 |
Compressor dimensions with fittings (In.) – 42.0L x 33.0W x 34.5H
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Dry weight (Lbs.) –685
Ratings per CAGI/PNEUROP PN2CPTC3.
Special Features
- Lifetime Warranty on Air End
- Powder-Coated, Galvanneal Sheetmetal Enclosure
- Spin-on Air-Oil Separating Element
- Lifting Bail
AIR COMPRESSOR
- Oil-Injected Rotary Screw Air End
- Made in the USA
ENGINE
- 25 HP Kohler®
- Gasoline Fuel
- 4-Cycle, V-Twin, Overhead Valve
- 5 Gal. Fuel Tank
GENERATOR
- Brushless
- Two 20 AMP 120 VAC GFCI Outlets
- One 30 AMP 120 Twist lock Outlet
SAFETY EQUIPMENT
- High-Temperature Shutdown
- Air Pressure-Relief Safety Valve
- Automatic Blowdown on Shutdown
- Oil Fill Plug Safety Relief
INSTRUMENTATION
- Hour Meter
- Pressure Gauge
Options/ Accessories
-
Service/Control Line Moisture Separators
-
Filter/Lubricator/Regulator (FLR)
-
Air Hoses, Hose Reels, And Fittings
-
OSHA Safety Valve (Velocity Fuse)
-
Remote Start
-
Tool Oiler/Lubricator
-
Post Drivers
-
CARB Casters
-
Cold Weather Package to Prevent Freeze-Ups
* All tanks Include a drain, check & pressure relief valve.
MAINTENANCE
- Easy service access – removable front panel and hinged top for serviceability
Parts
| Part Description | Part Number |
| Cold Weather Kit 12V (Viper Generator Series) – Includes Compressor & Engine Heaters | 032380 |
| Compressor Service Kit, Initial 50 Hours (Viper Generator Series) | KIT1284 |
| Compressor Service Kit, Lifetime Warranty (Viper Generator Series) | KIT1060 |
| Engine Service Kit – Includes 2 QT Oil, Oil Filter, Air Filter and Pre-Filter (Viper Generator Series) |
KIT1291 |
| Vanguard™ Premium Green Oil (Four Pack) | 264626-4GREEN |
| Vanguard™ Premium Oil (Four Gal.) | 264626-4PACK |
